Path : Laboratory Refrigerator / LabStar Sirius LSSI 3505

⇑ Overview: Laboratory Refrigerator

LabStar Sirius: next ⇒

Laboratory Refrigerator LabStar Sirius LSSI 35..

Forced air circulation with automatic defrost and condensate evaporation or
static cooling and manual defrost
Cooling unit top
Operating panel with main switch
- Electronic control with digital display
- Visual/audible alarm device
- Alarm warning for excess and insufficient temperature
- Door alarm
- No-volt remote alarm contact for connection to a remote alarm system
- RS-485 port
Self-closing and lockable door
Door hinges on right, changeable
Door seal changeable
3 adjustable grid inserts in tilt-resistant guide rails
Interior made of stainless steel (CNS)
4 castors, 2 lockable

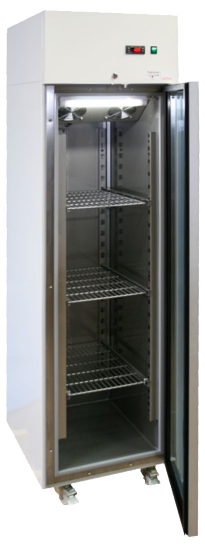

Fig.r.: LabStar Sirius LSSI 3505GEWU

Model LabStar Sirius		LSSI 3505	LSSI 3505	LSSI 3505	LSSI 3505
		Forced air circulation	Forced air circulation	Static cooling	Static cooling
Version		EWU/EEU Solid door	GEWU/GEEU Glass door	EWN/EEN Solid door	GEWN/GEEN Glass door
Temperature range	°C :	+1/+10	+1/+10	+1/+10	+1/+10
Content	litres (gross):	346	346	346	346
Content	litres (net) :	218	218	227	227
Ext. dimensions (W×D×H)	mm :	520 × 700 × 1997	520 × 700 × 1997	520 × 700 × 1997	520 × 700 × 1997
Int. dimensions (W×D×H)	mm :	400 × 575 × 1505	400 × 575 × 1505	400 × 575 × 1505	400 × 575 × 1505
Depth with door opened	mm :	1182	1182	1182	1182
Weight	kg :	98	98	98	98
Mains connection	:	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz
Grid inserts	:	3	3	3	3
Shipping dimensions (W×D×H)	mm :	650 × 780 × 2200	650 × 780 × 2200	610 × 840 × 2200	610 × 840 × 2200
Shipping weight	kg :	112	112	112	112
Refrigerant CFC- and HCFC-free	:	R134a	R134a	R134a	R134a

LabStar Sirius + Accessories	Outside / Inside	Cat. No.
LabStar Sirius LSSI 3505EWU	white / CNS	GSLSSI3505EWU
LabStar Sirius LSSI 3505EEU	CNS / CNS	GSLSSI3505EEU
LabStar Sirius LSSI 3505GEWU	white, glass door / CNS	GSLSSI3505GEWU
LabStar Sirius LSSI 3505GEEU	CNS, glass door / CNS	GSLSSI3505GEEU
LabStar Sirius LSSI 3505EWN	white / CNS	GSLSSI3505EWN
LabStar Sirius LSSI 3505EEN	CNS / CNS	GSLSSI3505EEN
LabStar Sirius LSSI 3505GEWN	white, glass door / CNS	GSLSSI3505GEWN
LabStar Sirius LSSI 3505GEEN	CNS, glass door / CNS	GSLSSI3505GEEN

Additional options and accessories on ⇒ request

LabStar Sirius + Accessories	Cat. No.
ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor, add. installed for ext. temperature recording	ZXX2-020-2L
Grid inserts, 330 × 545 mm (WxD)	ZLSSI4-330x545
Guide rails for grid inserts, 1 pair	ZLSSI4-023
Drawer with telescopic slide-out for LSSI 35xx, made of CNS	ZLSSI4-003
Interior socket, tropical design	ZLSSI1-001-01
Feet instead of castors made of CNS, 50 mm height adjustable	ZLSSI5-021-125
Duct to storage compartment 26 mm in diameter	ZLSSI1-002-26
MIN/MAX thermometer to be placed in refrigerators or freezers,	ZXX2-019-001
Measuring range -50/+50 °C, no add. temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well as	ZXX2-019-011
data-hold and relative measuring function, measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011,	ZXX2-022-100
Measuring range -100/+1000 °C, length 2 m, other ranges on request

Download Data sheet

Inventory Systems

Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.

⇒ Recommendations
for additional storage
sets can be found
in our separate
catalogue.

⇒ Please ask
for a personal
fitting option.

⇒ www.kryobox.de
