Chest Freezer ProfiTest

Static cooling (forced air circulation optional)
Manual defrost
Operating panel with micro-processor driven temperature controller
and digital displays for set value and actual value
Visual/audible alarm device, mains-independent
No-volt remote alarm contact for connection to a remote alarm system (optional)
External housing made of stainless steel (CNS) or white, galvanized steel plate
Lockable lid and spring-loaded hinges to allow opening at any angle
Interior made of stainless steel (CNS)

ProfiTest chest freezers are manufactured according to customer's requirements.
Therefore the following chart of some models does not show any temperature range. Dimensions are examples only.

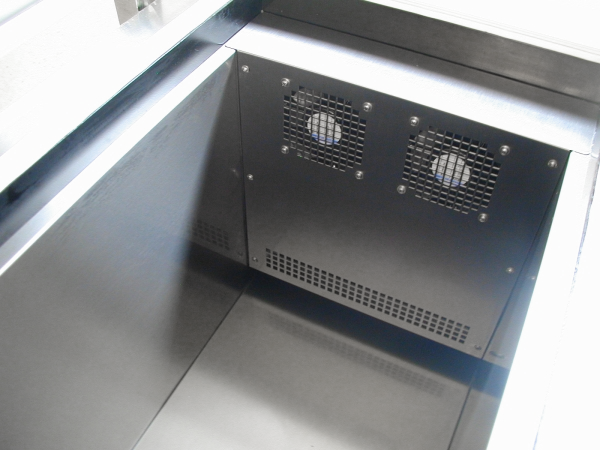

Fig.r.: ProfiTest PTC (Special version with 2 seperate cooling circuits)

Model ProfiTest		PTC10..	PTC20..	PTC30..
Temperature range *	°C :		see below
Content	litres (gross) :	100	200	300
Ext. dimensions (W×D×H) **	mm :	840 × 680 × 820	1340 × 680 × 820	1340 × 680 × 1020
Int. dimensions (W×D×H) **	mm :	500 × 500 × 400	1000 × 500 × 400	1000 × 500 × 600
Weight	kg :	130	180	220
Mains connection	:	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz
Refrigerant	:	R507	R507	R507

* Temperature range according to customer's requirements

** Inner and exterior dimensions can be fixed according to customer's requirements

ProfiTest PTC Accessories
* Forced air circulation
* Duct to storage compartment
* 4 castors (2 lockable), factory mounted
* Pt100 temperature sensor, add. installed for ext. temperature recording
* ProfiTec temperature monitoring and recording system
* 30-day linear temperature recorder
* ProfiCaller Telephone dialler
* Visual/audible alarm device, mains-independent circuit
* No-volt remote alarm contact for connection to a remote alarm system
* Water-cooled condenser
