Path : Laboratory Upright Freezers / ProfiLine PLECU

⇑ Overview: Laboratory Upright Freezers

ProfiLine: next ⇒

Laboratory Upright Freezer ProfiLine PLECU

Static cooling and manual defrost
Low-noise and low-vibration fully hermetic compressor,
air-cooled and low-maintenance
Operating panel with key-operated main switch
- Elektronic control with digital display
- Visual/audible alarm device, mains independent
- Alarm warning for excess and sufficient temperature
- No-volt remote alarm contact for connection to an alarm system
on the premises
Auto-voltage safeguard (12VAC Auto-Boost)
Double door gaskets and 5 inner doors to minimize cold air loss
Sturdy cabinet doors, double walled and well insulated,
balanced and easy to operate
External housing made of white corrosion-resistant, galvanized
steel plate with high-impact finish, easy to clean
White corrosion-resistant interior with smooth surface
for optimum use, easy to clean
Duct to storage compartment 25 mm in diameter
4 castors with brakes (PLECU 41405 without brakes)

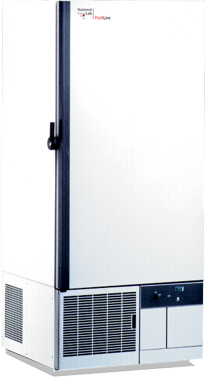

Fig.r.: ProfiLine PLECU 51405

Model ProfiLine		PLECU 41405	PLECU 51405	PLECU 61405
Temperature range	°C :	-10/-40	-10/-40	-10/-40
Content	litres (gross) :	368	490	651
Ext. dimensions (W×D×H)	mm :	846 × 836 × 1979	846 × 940 × 1979	1036 × 940 × 1979
Int. dimensions (W×D×H)	mm :	584 × 490 × 1308	584 × 643 × 1308	777 × 643 × 1308
Depth with door opened	mm :	1641	1793	1930
Weight	kg :	268	321	344
Mains connection	:	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz
Shipping dimensions (W×D×H)	mm :	1050 × 1020 × 2100	1060 × 1180 × 2100	1250 × 1180 × 2100
Shipping weight	kg :	298	351	374
Refrigerant CFC- and HCFC-free	:	Mix	Mix	Mix

ProfiLine PLECU + Accessories	Cat. No.
ProfiLine PLECU 41405	GSPLECU41405
ProfiLIne PLECU 51405	GSPLECU51405
ProfiLIne PLECU 61405	GSPLECU61405
ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor, add. installed for ext. temperature recording	ZPL2-020-2L
Temperature Recorder, 7-day drive, 6" circular chart, factory installed	ZXX2-031-85
6" 7-day circular charts. Pck. of 100 pieces	ZXX2-032-115
CO2 back-up system, free-standing	ZXX2-090
Water-cooled condenser	ZPL9-010
MIN/MAX thermometer to be placed in refrigerators or freezers,	ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well	ZXX2-019-011
as data-hold and relative measuring function.
measuring range -200/+1370 °C.
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011,	ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request

Temperature Monitoring

ProfiTec
intelligent temperature monitoring and recording system

• For up to 4 refrigerators
and/or freezers
• Readings are stored over
a period up to 781 days
• Warning for excess and
insufficient temperature
• Includes no-volt remote
alarm contact
• The measuring protocol
can be fed to PC via
RS-232 port

⇒ to description

Download Data sheet

Storage system (modifiable)
	ALPHA Boxes (fiberboard)			EPPi^®Cryo Boxes (polypropylene)
	KA1050...	KA1075...	KA1100...	EPPi^® 50	EPPi^® 75	EPPi^® 102
Summary Stainless steel horizontal racks for upright freezers.
Model No.	No. of Racks x Boxes	No. of Racks x Boxes	No. of Racks x Boxes	No. of Racks x Boxes	No. of Racks x Boxes	No. of Racks x Boxes
PLECU 41..5	20 x 12	20 x 6	20 x 6	20 x 12	20 x 6	20 x 6
PLECU 51..5	20 x 16	20 x 8	20 x 8	20 x 16	20 x 8	20 x 8
PLECU 61..5	25 x 16	25 x 8	25 x 8	25 x 16	25 x 8	25 x 8
⇒ Please ask for a personal fitting option.
⇒ Catalogue "Inventory Systems for Freezers and Refrigerators"
⇒ www.kryobox.de
